ASTMD1448 ISO2403 Airflow Method Cotton Fineness Analyzer Micronaire Tester Fiber Maturity Test Machine Permeability Detector

Accuracy : /

Brand Name : LONROY

customized support : OEM, ODM, OBM

Place of Origin : Guangdong, China

Type : Cotton Fineness Analyzer

Protection Class : /

power : /

Voltage : 220 V, Other

MOQ : 1

Accuracy Class : High Accuracy

warranty : 1 Year

Contact Now

Products Description

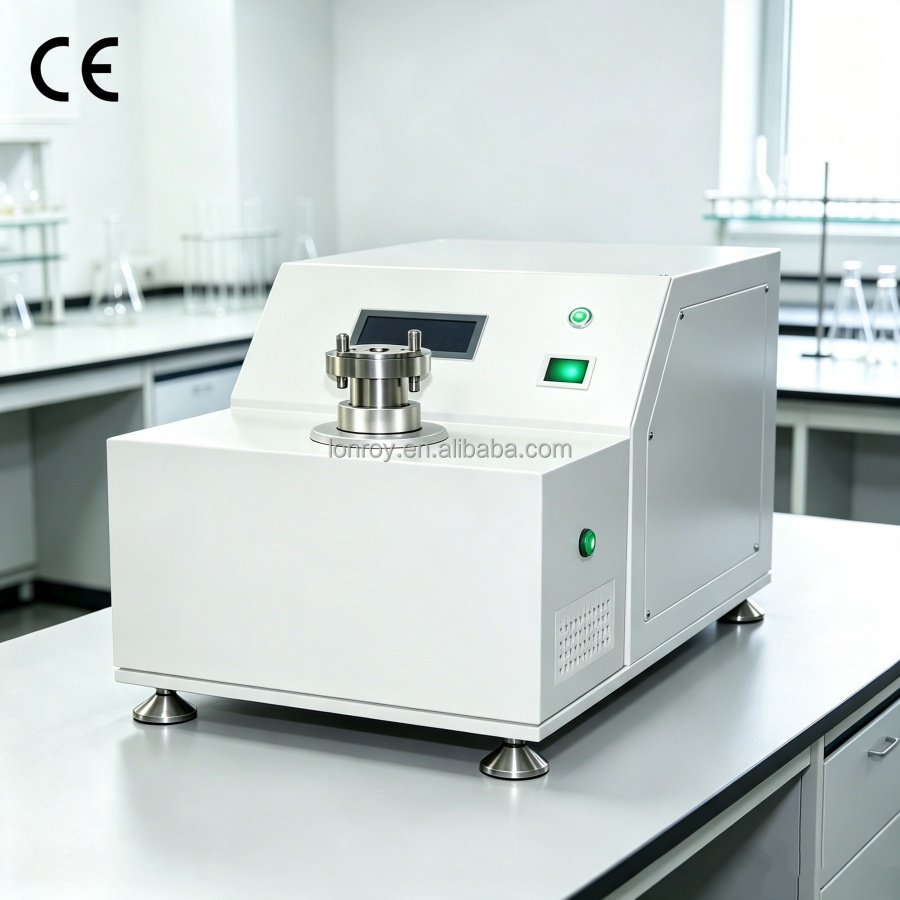

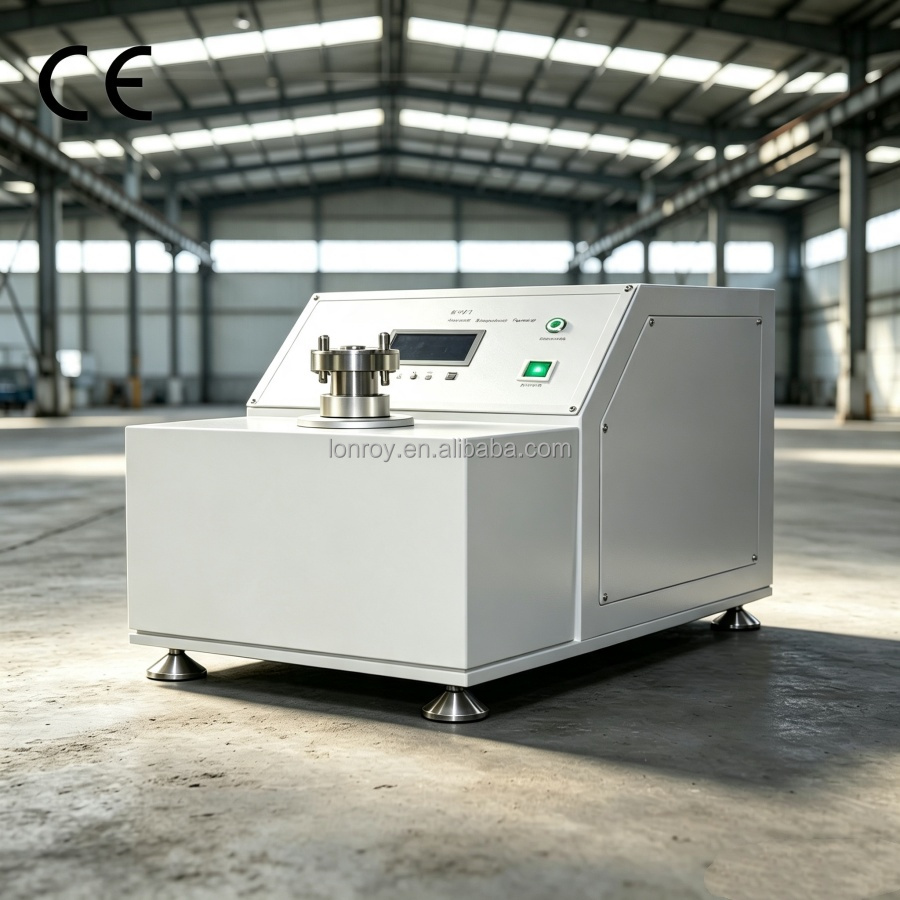

ASTMD1448 ISO2403 Airflow Method Cotton Fineness Analyzer Micronaire Tester Fiber Maturity Test Machine Permeability Detector

Standards Compliance GB 1103-2007, ASTM D1448, BS 3181, ISO 2403
ASTMD1448 ISO2403 Airflow Method Cotton Fineness Analyzer Micronaire Tester Fiber Maturity Test Machine Permeability Detector
Testing Principle Uses the airflow method to measure the Micronaire value (an indicator of cotton maturity). When air at a specific pressure is applied to a cotton sample, the rate of airflow varies depending on the cotton's fineness; by measuring this airflow rate, the corresponding Micronaire value can be determined.
ASTMD1448 ISO2403 Airflow Method Cotton Fineness Analyzer Micronaire Tester Fiber Maturity Test Machine Permeability Detector
Technical Features 1. Employs a high-precision, wide-range electronic flow sensor. It offers a broad Micronaire measurement range (2.7–7.0), capable of testing virtually all cotton varieties on the market; it is currently the instrument with the widest Micronaire measurement range using the airflow method. 2. One-touch testing: After loading the sample, a single button press initiates rapid testing. The instrument features a USB interface; included software allows for statistical analysis and printing of standard test reports, as well as saving reports in Excel format. 3. Convenient calibration: Rapid calibration is performed using standard cotton samples. Once calibrated, the instrument can accurately measure Micronaire values even in non-standard laboratory environments.

ASTMD1448 ISO2403 Airflow Method Cotton Fineness Analyzer Micronaire Tester Fiber Maturity Test Machine Permeability Detector

Product Configuration Standard Configuration: Main unit (1), power cord (1). Optional Accessories: 1. LABTest analysis software 2. National standard cotton samples.

ASTMD1448 ISO2403 Airflow Method Cotton Fineness Analyzer Micronaire Tester Fiber Maturity Test Machine Permeability Detector
ASTMD1448 ISO2403 Airflow Method Cotton Fineness Analyzer Micronaire Tester Fiber Maturity Test Machine Permeability Detector
ASTMD1448 ISO2403 Airflow Method Cotton Fineness Analyzer Micronaire Tester Fiber Maturity Test Machine Permeability Detector
ASTMD1448 ISO2403 Airflow Method Cotton Fineness Analyzer Micronaire Tester Fiber Maturity Test Machine Permeability Detector
ASTMD1448 ISO2403 Airflow Method Cotton Fineness Analyzer Micronaire Tester Fiber Maturity Test Machine Permeability Detector
Specification
Main Technical Specifications
Item
Specification
Measurement Range
2.0–7.5 Micronaire
Accuracy
0.03 Micronaire (standard laboratory environment)
Test Time
Average 15 seconds
Sample Mass
5 ± 0.1 g
Power Supply
AC 100–240 V, 50/60 Hz
PC Communication
USB connection
Dimensions
L520 x W280 x H300 mm
Weight
10 kg
Our Advantages
ASTMD1448 ISO2403 Airflow Method Cotton Fineness Analyzer Micronaire Tester Fiber Maturity Test Machine Permeability Detector
