IEC 60529 IEC 60065 Inspection Probe Fingers Contact Protection Testing Machine Test Probe

Brand Name : Lonroy

Place of Origin : China

MOQ : 1

Voltage : 220 V

Protection Class : Ip56

Baffle diameter : 50mm

Baffle length : 100mm

Finger diameter : 12mm

Finger length : 80mm

Handle material : Nylon

Finger material : Steel

Thread size : M6

Compliance standards : GB/T16482-2008, IEC61032, GB4208, IEC60529

Test type : Contact protection

Sample range : Live components or mechanical parts

Function : Shock-proof testing

Connection type : Terminals

Compatibility : Push-pull force gauge

Certification : ISO ASTM CE

Price : Negotaible

Packaging Details : Wooden package

Delivery Time : 5-8 work days

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Supply Ability : 200

Contact Now

IEC 60529 IEC 60065 Inspection Probe Fingers Contact Protection Testing Machine Test Probe

Product Description

Compliance with standards

GB/T16482-2008 Figure 1, IEC61032 Figure 1, GB4208 IP1, IEC60529 IP1.

Product Overview

To test the prevention of human contact with dangerous components, and also for protection tests to prevent the back of the hand from touching.

Sample range: Easily accessible live components or mechanical parts of the enclosure.

Structure and Function

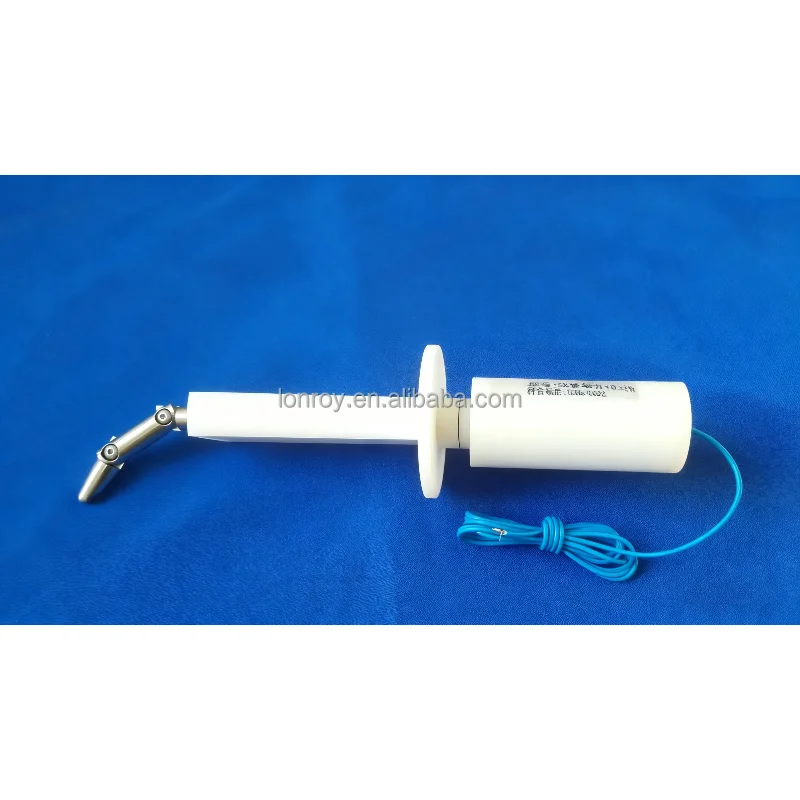

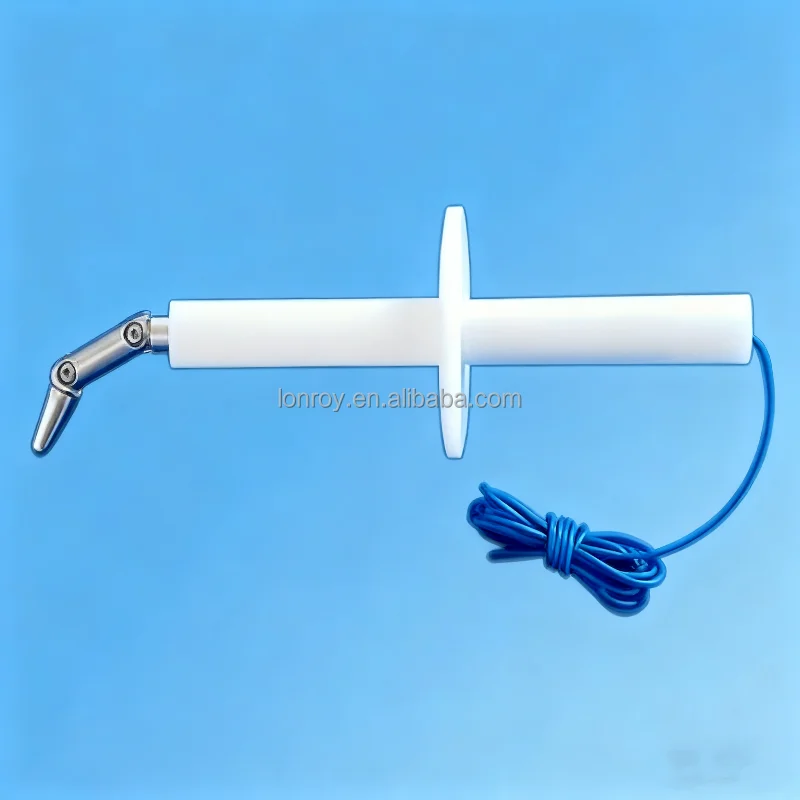

Nylon handle + steel ball. Connect terminals to conduct shock-proof tests, or at the end of the handle, open M6 threaded holes (compatible with the push-pull force gauge for use).


IEC 60529 IEC 60065 Inspection Probe Fingers Contact Protection Testing Machine Test Probe

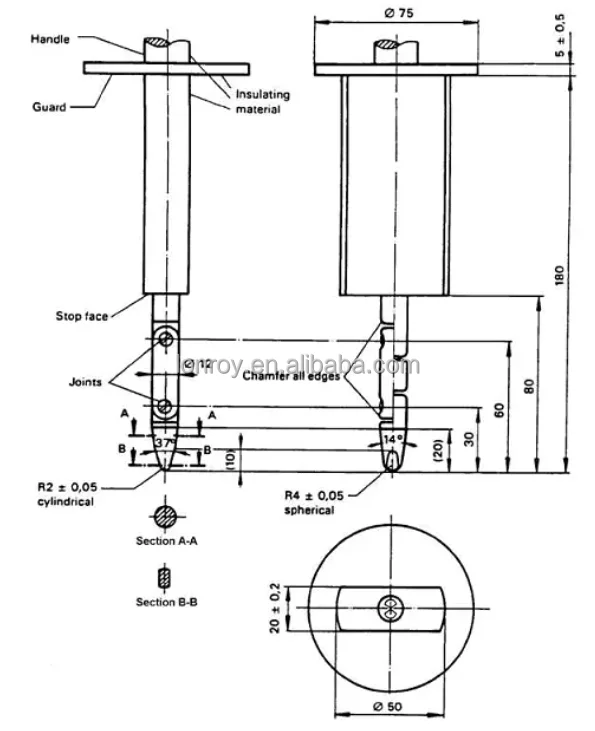

Technical Specification

Diameter of the curved finger

12mm

Length of the curved finger

80mm (total length of three sections)

Diameter of the baffle

50mm

Length of the baffle

100mm

IEC 60529 IEC 60065 Inspection Probe Fingers Contact Protection Testing Machine Test ProbeIEC 60529 IEC 60065 Inspection Probe Fingers Contact Protection Testing Machine Test ProbeIEC 60529 IEC 60065 Inspection Probe Fingers Contact Protection Testing Machine Test ProbeIEC 60529 IEC 60065 Inspection Probe Fingers Contact Protection Testing Machine Test Probe
