GMW 3405 BN 106 Seam Fatigue Tester TSL 5101G Leather Seat Materials Tear Resistance Testing Machine Textile Testing Mac

Place of Origin : China

Brand Name : Lonroy

MOQ : 1

Voltage : 220V

Protection Class : IP56

Stroke : 140mm

Clamping Width : 50mm

Overall Dimensions : 13×31×17 inches

Weight : 50kg (110lb)

Number of Workstations : 2

Sample Load : 3kg

Speed : 30 reciprocations per minute

Counter Digits : At least four digits

Test Spacing : Adjustable at 120mm, 124mm, 140mm

Material : Non-corrosive structural aluminum and stainless steel

Surface Treatment : Powder coating and anodizing

Bearings : Precise spherical and needle-shaped

Controller : Programmable with self-stop function

Certification : ISO ASTM CE

Price : Negotaible

Packaging Details : Wooden package

Delivery Time : 5-8 work days

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Supply Ability : 200

Contact Now

GMW 3405 BN 106 Seam Fatigue Tester TSL 5101G Leather Seat Materials Tear Resistance Testing Machine
Product Introduction

The Seam Fatigue Tester is a 2-position desktop machine designed to evaluate tear resistance and elongation of seam pinholes in textile or leather seat materials. Each testing position features corresponding fixtures for sample fixation and a height gauge for precise 140mm spacing between fixture clamps.

Testing Process

Samples are secured in the clamping device with adjusted positions to meet standard spacing requirements. After setting the test cycles, the reducer drives the middle clamping device in reciprocating motion while left/right clamping devices maintain a 3kg load. The proximity switch-connected counter records movement cycles, automatically stopping at the preset count. Seam area changes are measured to determine material fatigue resistance.

Scope of Application

This method evaluates fatigue resistance strength of seams on automotive seat surface materials (leather, synthetic leather, fabric). Testing stitched/bonded structures helps predict seat lifespan and identify improvement opportunities for enhanced durability.

Instrument Features
  • Corrosion-resistant construction: structural aluminum and stainless steel components
  • Durable powder coating and anodized surface treatments
  • Precision spherical and needle-shaped bearings
  • Programmable controller with automatic stop function
  • Manual test speed adjustment
  • Adjustable weight holder height and fixture spacing
  • Safety protective cover prevents operator contact with test bench
Conforming Standards

Toyota TSL 5101G (3.7), GMW 3405, Nissan M-0154, Ford Motor Co. BN 106-02, TSL 5100G Section 4.2

Technical Specifications
Specification Value
Number of Workstations 2
Sample Load 3kg
Speed 30 reciprocations per minute
Counter 4-digit minimum (standard test cycle: 2500)
Stroke 140mm
Test Spacing Adjustable at 120mm, 124mm, 140mm
Clamping Width 50mm
Dimensions 13*31*17 inches (L*W*H)
Weight 50kg (110lb)

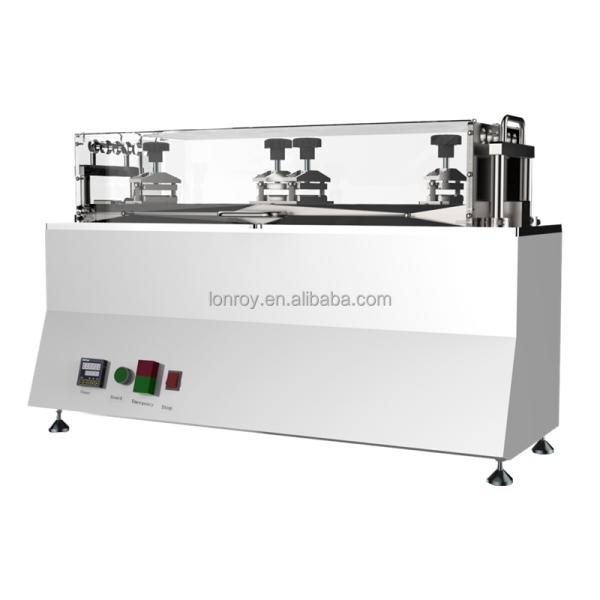

GMW 3405 BN 106 Seam Fatigue Tester TSL 5101G Leather Seat Materials Tear Resistance Testing Machine Textile Testing Mac
GMW 3405 BN 106 Seam Fatigue Tester
GMW 3405 BN 106 Seam Fatigue Tester TSL 5101G Leather Seat Materials Tear Resistance Testing Machine Textile Testing Mac
Testing mechanism detail
GMW 3405 BN 106 Seam Fatigue Tester TSL 5101G Leather Seat Materials Tear Resistance Testing Machine Textile Testing Mac
Fixture clamping system
GMW 3405 BN 106 Seam Fatigue Tester TSL 5101G Leather Seat Materials Tear Resistance Testing Machine Textile Testing Mac
Control panel interface
GMW 3405 BN 106 Seam Fatigue Tester TSL 5101G Leather Seat Materials Tear Resistance Testing Machine Textile Testing Mac
Complete testing system
